Primary Framing

Zamil Steel pre-engineered buildings are custom-designed to meet your exact requirements. The most common Primary Framing systems are shown below. Practically any frame geometry is possible. Consult a Zamil Steel representative for your specific requirements.

Primary Build-Up Members: Minimum yield strength is 34.5 kN/ cm2

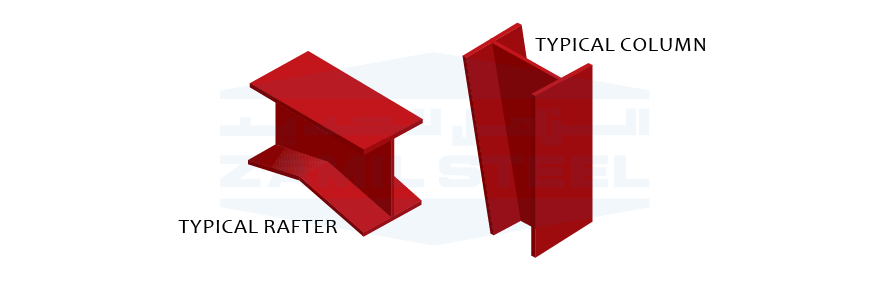

Primary Members

At Zamil Steel we can produce other non-standard main frames, of almost any configuration, if required.

High grade steel plate conforming to ASTM A 572M Grade 345. Factory painted with a minimum of 35 microns (DFT) of corrosion protection primer.

Frame Types:
Clear Span

Building without interior columns - maximum practical width = 90 m

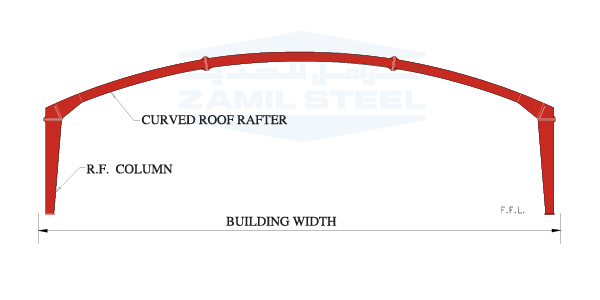

Clear-Span (Arched)

Arched Clear-Span - maximum practical width = 90 m

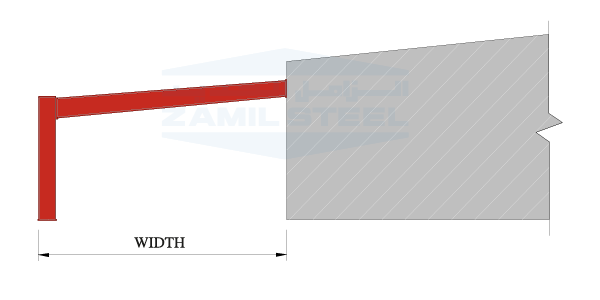

Lean-To

Maximum practical width = 24 m

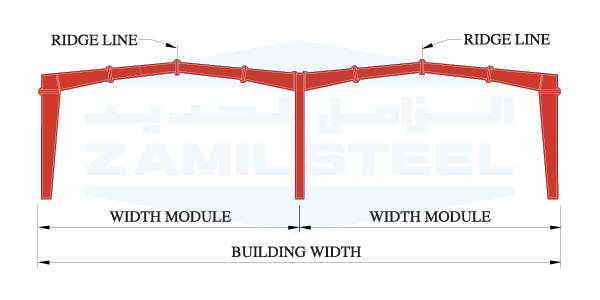

Multi Gable

Maximum practical module width = 80 m

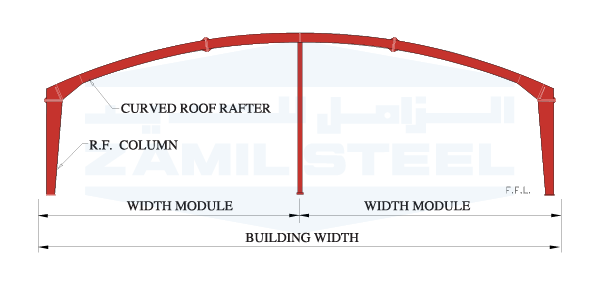

Multi-Span (Arched) AMS-1

Building with one interior column - maximum practical module width = 70 m
More multi-spans are possible (AMS-2, AMS-3,...)

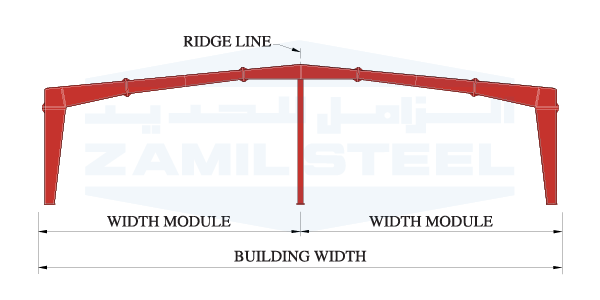

Multi-Span 1

Building with one interior column - maximum practical module width = 70 m

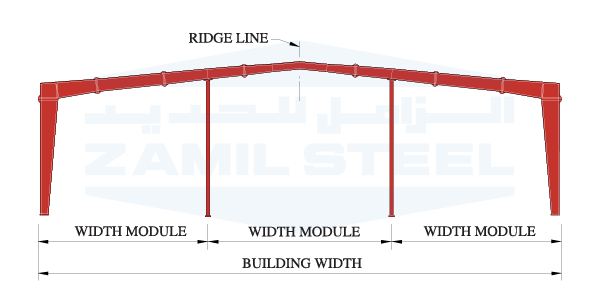

Multi-Span 2

Building with one interior column - maximum practical module width = 70 m

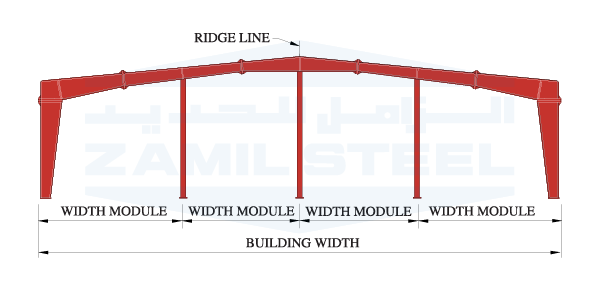

Multi-Span 3

Building with one interior column - maximum practical module width = 70 m

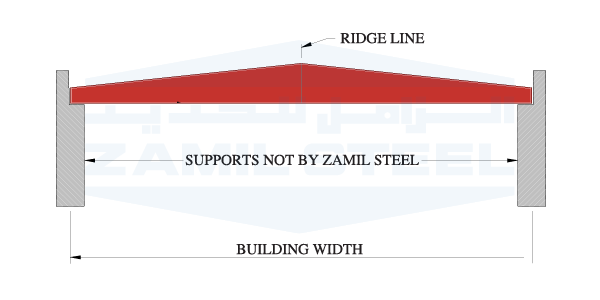

Roof System

Maximum practical width = 30 m

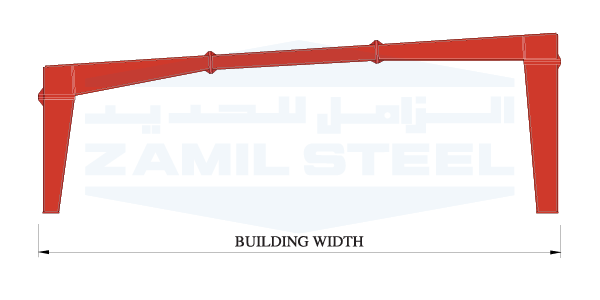

Single Slope

Building without interior columns - maximum practical width = 50 m
